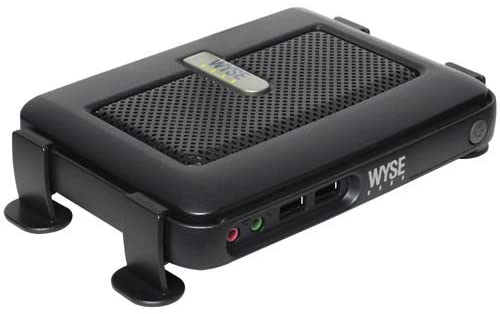

MANUFACTURER: Wyse Technology Inc.

PART NUMBER: 902168-27L

TYPE: C90LEW Systems / Thin Client


PROCESSOR / CHIPSET
CPU - VIA C7 1 GHz
Power Efficiency - Ultra Low Voltage (ULV)
Chipset Type - VIA VX855

RAM
Installed Size - 2 GB / 2 GB (max)
Technology - DDR2 SD RAM
Installed Size - 2 GB

MEMORY
Max Supported Size - 2 GB

ENVIRONMENTAL PARAMETERS
Humidity Range Operating - 10 - 95% (non-condensing)
Min Operating Temperature - 50 °F
Max Operating Temperature - 104 °F

HARD DRIVE
Type - Flash
Capacity - 2 GB
Flash Max Supported Size - 2 GB

INPUT
Typekeyboard
mouse

COMMUNICATIONS
Wireless Protocol - 802.11b/g/n

OPTICAL STORAGE
Drive Typeno optical drive

PROCESSOR
Installed Qty - 1
Max Supported Qty - 1
Type - C7
Manufacturer - VIA
Clock Speed - 1 GHz

NETWORKING
Data Link Protocol - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Form Factor - integrated
Compliant Standards - IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wireless LAN Supported - Yes

SYSTEM
Type - thin client
Hard Drive Capacity - 2 GB

GRAPHICS CONTROLLER
Form Factor - integrated
Graphics Processor - VIA Chrome9 HCM
Video Interfaces - DVI, VGA
Max Monitors Supported - 2

DIMENSIONS & WEIGHT
Width - 7 in
Depth - 4.8 in
Height - 1.3 in

AUDIO OUTPUT
Form Factor - integrated
Sound Output  - Modestereo
Max Sampling Rate - 48 KHz

MAINBOARD
Chipset Type - VIA VX855

OPERATING SYSTEM / SOFTWARE
OS Provided: Type - Microsoft Windows Embedded Standard 2009
OS Provided - Microsoft Windows Embedded Standard 2009
Type - Wyse Device Manager Workgroup Edition

VIDEO OUTPUT
Graphics Processor - VIA Chrome9 HCM
Graphics Processor Series - VIA Chrome9
Max Monitors Supported - 2
Video Interfaces - DVI, VGA
